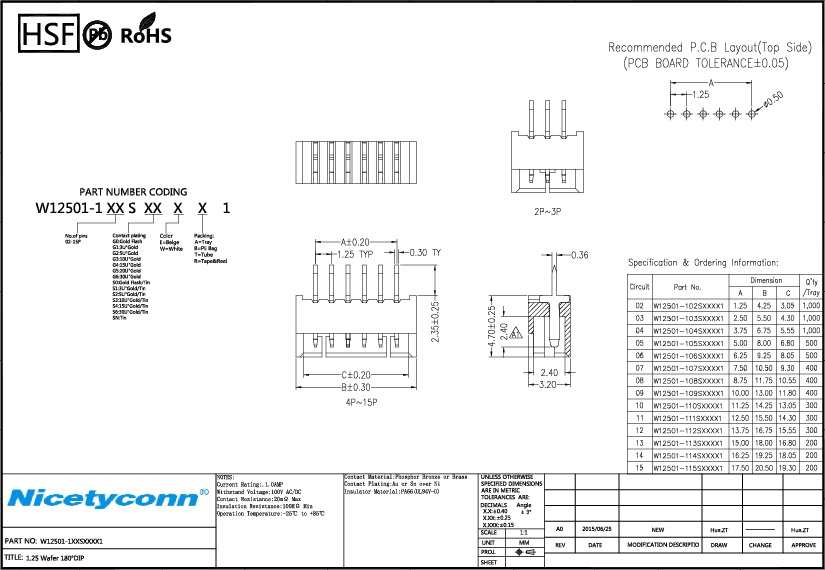

1.25 Pitch Straight Type Wafer Connector |
|
Specification: |
|
Current Rating: 1.0AMP |
|
Withstand Voltage: 100V AC/DC |
|
Contact Resistance: 20MΩ Max |
|
Insulation Resistance: 100MΩ Min |
|
Operation Temperature: -25oC to +85oC |
|
Insulation Material: PA66(UL94V-0) |
|
Contact Material: phosphor bronze or brass |
|
Contact Plating: Au or Sn over Ni |
